Usage and Application

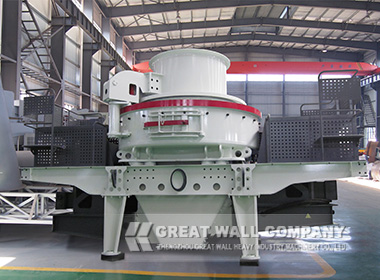

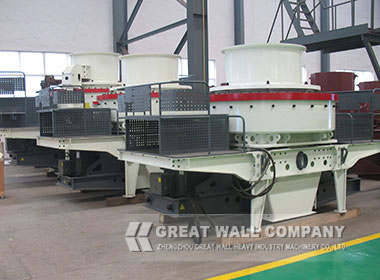

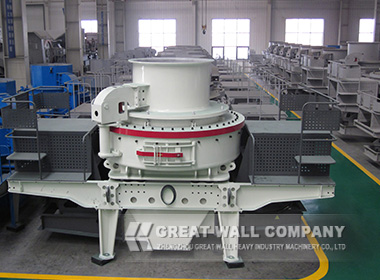

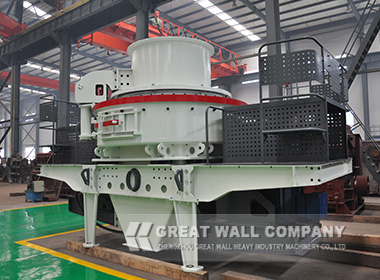

VSI5X high-efficiency impact crusher is a new generation of fine crushing and shaping equipment developed and produced with the goal of improving crushing efficiency and reducing operation cost. It is mainly used for artificial sand making and stone shaping to produce high-quality sand and gravel aggregate for the construction engineering field.

Features
1. The optimized nozzle structure and the smooth material flow curve design inside the impeller can reduce the material flow resistance, improve material flow volume and crushing ratio, so as to achieve higher efficiency, better grain shape and larger capacity.
2. After partial wear of the surrounding protection plate, it can be used by turning up and down to improve the material utilization rate and the service life of wearing parts; combined hammer head design, only need to replace the worn part of hammer head, reduce the use cost.
3. Adopting rhombic impact block, auxiliary hammer head is added to protect the impeller vertical plate effectively.
4. The frame adopts a new hot riveting process, which enhances structure strength and toughness; the components are made of high chromium iron, high manganese steel and other high quality wear resistant materials, which improves the equipment comprehensive performance and reduces failure rate.
5. Dual oil pump complementary system can ensure the oil supply, so that the equipment operation is safe and reliable; the thin oil lubrication system can reduce the bearing friction, improve service life of the bearing.

The material can enter the rotor directly and be thrown out after centrifugal acceleration, which will collide with the surrounding guard plate and break up. It can also be divided through the material-dividing plate, one is scattered around, the other part enters the rotor and rushes out after acceleration, collides and rubs with the surrounding scattered materials, collides and rebounds with the surrounding guard plate, forming a circular strike. With the progress of crushing, the small materials particles gradually form a material layer curtain around the surrounding protection plate to improve the crushing effect and protect the equipment. The crushed material comes downwards through outlet finally.

Model			5X7615	5X8522	5X9532	5X1145
Capacity (t/h)		Center and Ring Feeding	150-280	240-380	350-540	500-640
		Center Feeding	70-140	120-200	180-280	250-360
Max Feeding Size (mm)		Soft Material	35	40	45	50
		Hard Material	30	35	40	45
Rotation Speed(r/min)			1700-1900	1500-1700	1300-1510	1100-1310
Power of Double Motor(kw)			110-150	180-220	264-320	400-440
Overall Dimension (mm)			4100×2330×2300	4140×2500×2700	4560×2600×2900	5100×2790×3320
Weight (t)			12.1	14.8	18.6	27.5
Thin Oil Lubrication Station	Power of Double Oil Pump(kw)		2×0.25
	Power of Oil Tank Heater(kw)		2
	Overall Dimension (mm)		820×520×1270

Note: 1. Any change of technical data will not inform additionally.
